展开kubernetes持久化存储
k8s存储介绍
容器内部的的存储在生命周期是短暂的，会随着容器环境的销毁而销毁，具有不稳定性。在k8s里将对容器应用所需的存储资源抽象为存储卷(Volume)概念来解决这些问题。
k8s中持久化存储类型
k8s目前支持的Volume类型包括k8s的内部资源对象类型，开源共享存储类型和公有云存储等。分类如下：
## k8s特定的资源对象：
1. ConfigMap 应用配置
2. Secret 加密数据
3. ServiceAccountToken token令牌相关数据
## k8s本地存储类型:
1. EmptDir 临时存储
2. HostPath 宿主机目录
## 持久化存储(PV)和网络共享存储：
1. CephFS : 开源共享存储系统 OpenStack，大数据 都在使用CephFS
2. GlusterFS（GFS）: 开源共享存储系统（简单理解就是NFS集群 也是挂载的形式）
3. FastDFS ：开源共享存储系统
4. NFS : 开源共享存储（单机）
5. PersistentVolumeClaim : 简称PVC，持久化存储的申请空间持久化存储方式
- 1，EmptyDir
- 2，HostPath
- 3，NFS
- 4，PV 和 PVC
emptyDir
## 用emptyDir让同一个pod里的两个容器做共享存储 会在宿主机上起一个随机目录放置挂载的内容 但不做持久化 pod结束就会清除目录
[root@master-1 wp]# vim nginx-dp.yml
apiVersion: "apps/v1"
kind: "Deployment"
metadata:
name: nginx-dp
spec:
replicas: 1
selector:
matchLabels:
app: nginx-pod
template:
metadata:
labels:
app: nginx-pod
spec:
volumes:
- name: empty-path
emptyDir: {}
containers:
- name: nginx
image: nginx:alpine
imagePullPolicy: IfNotPresent
volumeMounts:
- name: empty-path
mountPath: /usr/share/nginx/html
[root@master-1 wp]# kubectl apply -f nginx-dp.yml
## 查看pod IP
[root@master-1 wp]# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
nginx-dp-774d477f-gnqtb 1/1 Running 0 20s 10.2.1.156 node-1 <none> <none> <none>
## curl 网站
[root@master-1 wp]# curl 10.2.1.156
<html>
<head><title>403 Forbidden</title></head>
<body>
<center><h1>403 Forbidden</h1></center>
<hr><center>nginx/1.21.5</center>
</body>
</html>
## 查看随机目录位置的方法：到对应的node节点上 看这个容器的配置
# 找到对应的容器
docker ps
# 查看该容器的配置
docker inspect 容器ID
# 找到
"Mounts": [
{
"type": "bind"
"Source": "随机目录"
......
}
]
## 复制文件中的随机目录 写一个index.html
[root@node-1 ~]# vim /var/lib/kubelet/pods/4bb410e7-2188-49e7-a8b1-88180f9362d2/volumes/kubernetes.io~empty-dir/empty-path/index.html
111
[root@master-1 wp]# curl 10.2.1.156
111
hostPath
## 需要定义一个Volume 然后两个容器里的目录分别挂载到Volume里定义的宿主机目录上（目录自动创建）
[root@elkstack01 volume]# vim nginx-dp.yaml
apiVersion: "apps/v1"
kind: "Deployment"
metadata:
name: nginx-dp-empty
spec:
replicas: 1
selector:
matchLabels:
app: nginx-pod
template:
metadata:
labels:
app: nginx-pod
spec:
volumes:
- name: local-path
hostPath:
path: /data/nginx/data
containers:
- name: nginx
image: nginx:alpine
imagePullPolicy: IfNotPresent
volumeMounts:
- name: local-path
mountPath: /usr/share/nginx/html
[root@master-1 wp]# kubectl apply -f nginx-dp.yml
## 查看pod IP
[root@master-1 wp]# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
nginx-dp-empty-bdcb5cc4-mkm74 1/1 Running 0 16s 10.2.1.158 node-1 <none> <none>
## curl 网站
[root@master-1 wp]# curl 10.2.1.158
<html>
<head><title>403 Forbidden</title></head>
<body>
<center><h1>403 Forbidden</h1></center>
<hr><center>nginx/1.21.5</center>
</body>
</html>
## 到对应的node节点上 修改指定的目录里的index.html
[root@node-1 ~]# vim /data/nginx/data/index.html
666
[root@master-1 wp]# curl 10.2.1.158
666
## 用emptyDir让同一个pod里的两个容器做共享存储 会在宿主机上起一个随机目录放置挂载的内容 但不做持久化 pod结束就会清除目录
[root@master-1 wp]# vim nginx-dp.yml
apiVersion: "apps/v1"
kind: "Deployment"
metadata:
name: nginx-dp
spec:
replicas: 1
selector:
matchLabels:
app: nginx-pod
template:
metadata:
labels:
app: nginx-pod
spec:
volumes:
- name: empty-path
emptyDir: {}
containers:
- name: nginx
image: nginx:alpine
imagePullPolicy: IfNotPresent
volumeMounts:
- name: empty-path
mountPath: /usr/share/nginx/html
[root@master-1 wp]# kubectl apply -f nginx-dp.yml
## 查看pod IP
[root@master-1 wp]# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
nginx-dp-774d477f-gnqtb 1/1 Running 0 20s 10.2.1.156 node-1 <none> <none> <none>
## curl 网站
[root@master-1 wp]# curl 10.2.1.156
<html>
<head><title>403 Forbidden</title></head>
<body>
<center><h1>403 Forbidden</h1></center>
<hr><center>nginx/1.21.5</center>
</body>
</html>
## 查看随机目录位置的方法：到对应的node节点上 看这个容器的配置
# 找到对应的容器
docker ps
# 查看该容器的配置
docker inspect 容器ID
# 找到
"Mounts": [
{
"type": "bind"
"Source": "随机目录"
......
}
]
## 复制文件中的随机目录 写一个index.html
[root@node-1 ~]# vim /var/lib/kubelet/pods/4bb410e7-2188-49e7-a8b1-88180f9362d2/volumes/kubernetes.io~empty-dir/empty-path/index.html
111
[root@master-1 wp]# curl 10.2.1.156
111## 需要定义一个Volume 然后两个容器里的目录分别挂载到Volume里定义的宿主机目录上（目录自动创建）
[root@elkstack01 volume]# vim nginx-dp.yaml
apiVersion: "apps/v1"
kind: "Deployment"
metadata:
name: nginx-dp-empty
spec:
replicas: 1
selector:
matchLabels:
app: nginx-pod
template:
metadata:
labels:
app: nginx-pod
spec:
volumes:
- name: local-path
hostPath:
path: /data/nginx/data
containers:
- name: nginx
image: nginx:alpine
imagePullPolicy: IfNotPresent
volumeMounts:
- name: local-path
mountPath: /usr/share/nginx/html
[root@master-1 wp]# kubectl apply -f nginx-dp.yml
## 查看pod IP
[root@master-1 wp]# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
nginx-dp-empty-bdcb5cc4-mkm74 1/1 Running 0 16s 10.2.1.158 node-1 <none> <none>
## curl 网站
[root@master-1 wp]# curl 10.2.1.158
<html>
<head><title>403 Forbidden</title></head>
<body>
<center><h1>403 Forbidden</h1></center>
<hr><center>nginx/1.21.5</center>
</body>
</html>
## 到对应的node节点上 修改指定的目录里的index.html
[root@node-1 ~]# vim /data/nginx/data/index.html
666
[root@master-1 wp]# curl 10.2.1.158
666注意：不管是emptyDir还是hostPath都只是，单机POD持久化
wordpress需求
## wordpress 要运行在k8s中
## MySQL
1.名称空间： blog
2.镜像mysql:5.7
3.环境变量
- root密码：123
- 数据库：wordpress
- 用户：wordpress
- 密码：123
- 参数：字符集
5.数据持久化：在宿主机的/data/mysql/data
## wordpress需求
副本数为2
镜像：自己打（有坑），或者官方
数据库地址：cluster ip
数据库名称：wordpress
用户：wordpress
******** 使用NFS持久化数据，宿主机：/data/wordpress/data资源清单
[root@master-1 wordpress]# cat kube-wordpress.yaml
apiVersion: v1
kind: Namespace
metadata:
name: blog
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: mysql-dp
namespace: blog
spec:
replicas: 1
selector:
matchLabels:
mysql: pod
template:
metadata:
name: mysql-wusuoweila
labels:
mysql: pod
spec:
volumes:
- name: mysql-data
hostPath:
path: /data/mysql/data
containers:
- name: mysql-container
image: mysql:5.7
imagePullPolicy: IfNotPresent
env:
- name: MYSQL_ROOT_PASSWORD
value: '123'
- name: MYSQL_DATABASE
value: 'wordpress'
- name: MYSQL_USER
value: 'wordpress'
- name: MYSQL_PASSWORD
value: '123'
args:
- --character-set-server=utf8
- --collation-server=utf8_general_ci
volumeMounts:
- name: mysql-data
mountPath: /var/lib/mysql
---
apiVersion: v1
kind: Service
metadata:
name: mysql-svc
namespace: blog
spec:
selector:
mysql: pod
ports:
- name: mysql-port
port: 3306
protocol: TCP
targetPort: 3306
type: ClusterIP
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: wp-dp
namespace: blog
spec:
replicas: 2
selector:
matchLabels:
wp: pod
template:
metadata:
name: wp-wusuoweila
labels:
wp: pod
spec:
containers:
- name: wp-container
image: wordpress:latest
imagePullPolicy: IfNotPresent
env:
- name: WORDPRESS_DB_HOST
value: mysql-svc
- name: WORDPRESS_DB_NAME
value: 'wordpress'
- name: WORDPRESS_DB_USER
value: 'wordpress'
- name: WORDPRESS_DB_PASSWORD
value: '123'
---
apiVersion: v1
kind: Service
metadata:
name: wp-svc
namespace: blog
spec:
selector:
wp: pod
ports:
- name: wp-port
port: 80
protocol: TCP
targetPort: 80
type: ClusterIP
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: wp-ingress
namespace: blog
spec:
rules:
- host: blog.hg.com
http:
paths:
- path: /
pathType: ImplementationSpecific
backend:
service:
name: wp-svc
port:
number: 80存在问题
1）没有共享存储
- 访问网站，图片破图
2）没有回话保持
- 访问网站，一边登录 一边没登录
共享存储持久化
## 持久化存储(PV)和网络共享存储：
1. CephFS : 开源共享存储系统 OpenStack，大数据 都在使用CephFS
2. GlusterFS（GFS）: 开源共享存储系统（简单理解就是NFS集群 也是挂载的形式）
3. FastDFS ：开源共享存储系统
4. NFS : 开源共享存储（单机）
5. PersistentVolumeClaim : 简称PVC，持久化存储的申请空间
## 持久化存储(PV)和网络共享存储：
1. CephFS : 开源共享存储系统 OpenStack，大数据 都在使用CephFS
2. GlusterFS（GFS）: 开源共享存储系统（简单理解就是NFS集群 也是挂载的形式）
3. FastDFS ：开源共享存储系统
4. NFS : 开源共享存储（单机）
5. PersistentVolumeClaim : 简称PVC，持久化存储的申请空间NFS方案
1.NFS是物理机
1）node-1 和 node-2挂载宿主机hostPath，将宿主机的hostPath远程挂载到NFS
2）node-1 和 node-2直接挂载NFS
2.NFS是POD
1）node-1 和 node-2挂载宿主机hostPath，将宿主机的hostPath远程挂载到NFS
2）node-1 和 node-2直接挂载NFS
部署NFS
# 1.安装nfs
[root@nfs ~]# yum install -y nfs-utils
[root@node-1 ~]# yum install -y nfs-utils
[root@node-2 ~]# yum install -y nfs-utils
# 2.配置nfs
[root@nfs ~]# vim /etc/exports
/data/wordpress 172.16.1.0/24(rw,sync,no_root_squash)
# 3.创建共享存储目录
[root@nfs ~]# mkdir /data/wordpress -p
# 4.创建用户
[root@nfs ~]# groupadd www -g 666
[root@nfs ~]# useradd www -u 666 -g 666 -s /sbin/nologin -M/sbin/nologin -M
# 5.授权
[root@nfs ~]# chown -R www.www /data/wordpress/
# 6.启动nfs
[root@nfs ~]# systemctl start nfs-server挂载NFS
apiVersion: apps/v1
kind: Deployment
metadata:
name: wp-dp
namespace: blog
spec:
replicas: 2
selector:
matchLabels:
wp: pod
template:
metadata:
name: wp-wusuoweila
labels:
wp: pod
spec:
volumes:
- name: wp-data
nfs:
path: /data/wordpress
server: 172.16.1.31
containers:
- name: wp-container
image: wordpress:latest
imagePullPolicy: IfNotPresent
env:
- name: WORDPRESS_DB_HOST
value: mysql-svc
- name: WORDPRESS_DB_NAME
value: 'wordpress'
- name: WORDPRESS_DB_USER
value: 'wordpress'
- name: WORDPRESS_DB_PASSWORD
value: '123'
volumeMounts:
- name: wp-data
mountPath: /var/www/html/
## 完整清单
[root@master-1 wordpress]# cat kube-wordpress.yaml
apiVersion: v1
kind: Namespace
metadata:
name: blog
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: mysql-dp
namespace: blog
spec:
replicas: 1
selector:
matchLabels:
mysql: pod
template:
metadata:
name: mysql-wusuoweila
labels:
mysql: pod
spec:
volumes:
- name: mysql-data
hostPath:
path: /data/mysql/data
containers:
- name: mysql-container
image: mysql:5.7
imagePullPolicy: IfNotPresent
env:
- name: MYSQL_ROOT_PASSWORD
value: '123'
- name: MYSQL_DATABASE
value: 'wordpress'
- name: MYSQL_USER
value: 'wordpress'
- name: MYSQL_PASSWORD
value: '123'
args:
- --character-set-server=utf8
- --collation-server=utf8_general_ci
volumeMounts:
- name: mysql-data
mountPath: /var/lib/mysql
---
apiVersion: v1
kind: Service
metadata:
name: mysql-svc
namespace: blog
spec:
selector:
mysql: pod
ports:
- name: mysql-port
port: 3306
protocol: TCP
targetPort: 3306
type: ClusterIP
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: wp-dp
namespace: blog
spec:
replicas: 2
selector:
matchLabels:
wp: pod
template:
metadata:
name: wp-wusuoweila
labels:
wp: pod
spec:
volumes:
- name: wp-data
nfs:
path: /data/wordpress
server: 172.16.1.31
containers:
- name: wp-container
image: wordpress:latest
imagePullPolicy: IfNotPresent
env:
- name: WORDPRESS_DB_HOST
value: mysql-svc
- name: WORDPRESS_DB_NAME
value: 'wordpress'
- name: WORDPRESS_DB_USER
value: 'wordpress'
- name: WORDPRESS_DB_PASSWORD
value: '123'
volumeMounts:
- name: wp-data
mountPath: /var/www/html/
---
apiVersion: v1
kind: Service
metadata:
name: wp-svc
namespace: blog
spec:
selector:
wp: pod
ports:
- name: wp-port
port: 80
protocol: TCP
targetPort: 80
type: ClusterIP
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: wp-ingress
namespace: blog
spec:
rules:
- host: blog.hg.com
http:
paths:
- path: /
pathType: ImplementationSpecific
backend:
service:
name: wp-svc
port:
number: 80PV和PVC介绍
PV ：资源划分（相当于将电脑中一块磁盘分成多个盘符）
PVC ：从PV中申请使用资源，POD要跟PVC关联，才可以直接使用
PV是对底层网络共享存储的抽象，将共享存储定义为一种“资源”。
PV由管理员创建和配置
PVC则是用户对存储资源的一个“申请”。
就像Pod消费Node的资源一样，PVC能够“消费”PV资源
PVC可以申请特定的存储空间和访问模式PV和PVC生命周期
PV和PVC需要注意的地方
### 创建PVC之后，k8s就会自动去查找满足我们声明要求的PV,比如storageClassName(存储类别),accessModes(访问规则)以及容量这些是否满足要求，如果满足要求就将PV和PVC绑定在一起。
### 需要注意的是目前PV和PVC之间是一对一绑定的关系，也就是说一个PV只能被一个PVC绑定。
## 在PV的整个生命周期中，可能会处于4种不同的阶段:
1. Avaliable（可用） ： 表示可用状态，还未被任何PVC绑定
2. Bound （已绑定） ： 表示PV已经被PVC绑定
3. Released （已释放） ： PVC被删除，但是资源还未被集群重新声明
4. Failed （失败） ： 表示该PV的自动回收失败
PV和PVC实践
准备NFS服务器
## 部署nfs
[root@nfs ~]# yum install -y nfs-utils
## 修改nfs配置文件
[root@nfs ~]# vim /etc/exports
/data/nginx/data *(rw,sync,no_root_squash)
## 启动nfs
[root@nfs ~]# systemctl restart nfs
## 创建目录
[root@nfs ~]# mkdir /data/nginx/data -p
所有node节点安装nfs
[root@node-1 ~]# yum install -y nfs-utils
[root@node-2 ~]# yum install -y nfs-utils
[root@node-1 ~]# showmount -e 10.0.0.31
Export list for 10.0.0.31:
/data/wordpress 172.16.1.0/24
[root@node-2 ~]# showmount -e 10.0.0.31
Export list for 10.0.0.31:
/data/wordpress 172.16.1.0/24
[root@node-2 ~]#
创建PV资源
## 编写PV资源清单（划分共享存储的磁盘空间）
[root@master-1 pv]# vim wp-pv.yml
apiVersion: v1
kind: PersistentVolume ## kind 指定为 PersistentVolume（持久化卷）
metadata:
name: pv01 ## 定义pv的名字
spec:
capacity:
storage: 5Gi ## 定义这个pv的大小
accessModes: ## 定义访问规则
- ReadWriteOnce ## ReadWriteOnce：只有一个node节点可以挂载
persistentVolumeReclaimPolicy: Recycle ## 回收资源的规则
storageClassName: nfs01 ## 存储类别 后端的存储方式是啥 就写啥
nfs: ## 具有特定类别的PV只能与请求了该类别的PVC绑定
path: /data/wordpress ## 未指定类型的PV则只能对与不请求任何类别的PVC绑定
server: 172.16.1.31
## 启动
[root@master-1 pv]# kubectl apply -f wp-pv.yml
## PV资源关键参数:
capacity: PV存储的容量
# accessModes: 访问模式,k8s支持的访问模式如下
------------------------------------------------------
ReadWriteOnce(RWO) : 读写权限，并且只能被单个Node挂载
ReadOnlyMany(ROX) : 只读权限，允许被多个Node挂载
ReadWriteMany(RWX) : 读写权限，允许被多个Node挂载
------------------------------------------------------
# persistentVolumeReclaimPolicy: 回收策略
------------------------------------------------------
Retain : 保留数据，需要手工处理完数据，还能让新的PVC申请
Recycle : 简单清除文件的操作(例如运行rm -rf /dada/* 命令)，新的PVC可以直接申请
Delete : 与PV相连的后端存储完成Volume的删除操作（连PV都直接删除）
目前只有NFS和HostPath两种类型的PV支持Recycle策略。
------------------------------------------------------
## 查看PV
[root@master-1 pv]# kubectl get pv
NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS CLAIM STORAGECLASS REASON AGE
pv01 5Gi RWO Recycle Available nfs01 47s
## 查看详细信息
[root@master-1 pv]# kubectl describe pv
Name: pv01
Labels: <none>
Annotations: <none>
Finalizers: [kubernetes.io/pv-protection]
StorageClass: nfs01
Status: Available
Claim:
Reclaim Policy: Recycle
Access Modes: RWO
VolumeMode: Filesystem
Capacity: 5Gi
Node Affinity: <none>
Message:
Source:
Type: NFS (an NFS mount that lasts the lifetime of a pod)
Server: 172.16.1.31
Path: /data/nginx/data
ReadOnly: false
Events: <none>
创建PVC资源
## 编写PVC资源清单
[root@master-1 pv]# vim wp-pvc.yml
apiVersion: v1
kind: PersistentVolumeClaim ## kind 指定为 PersistentVolumeClaim（持久化要求）
metadata:
name: wp-pvc ## 定义pvc名字
spec:
accessModes: ## 定义访问规则
- ReadWriteOnce ## ReadWriteOnce：只有一个node节点可以挂载
resources:
requests:
storage: 4Gi ## 需要的容量
storageClassName: nfs01 ## 存储类别
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: wp-pvc
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 4Gi
storageClassName: nfs01
## 启动PVC k8s就会自动去查找满足要求的PV,比如storageClassName(存储类别),accessModes(访问规则)以及容量这些是否满足要求，如果满足要求就将PV和PVC绑定在一起。
[root@master-1 pv]# kubectl apply -f wp-pvc.yml
persistentvolumeclaim/wp-pvc created
## 查看PV 看看是否自动绑定（查看状态是不是Bound）
[root@master-1 pv]# kubectl get pv
NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS CLAIM STORAGECLASS REASON AGE
pv01 5Gi RWO Recycle Bound default/wp-pvc nfs01 11m
## 查看PVC
[root@master-1 pv]# kubectl get pvc
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
wp-pvc Bound pv01 5Gi RWO nfs01 45s
deploment
## pod管理PVC方式：是通过PVC的名字
## PVC关联PV的方式(匹配规则)：PVC根据以下内容去自动发现绑定PV
- accessModes：访问规则
- storageClassName：存储类别
- storage：容量是否足够
## 还是以volumes（挂载）的形式
[root@elkstack01 volume]# cat kube-wordpress.yaml
apiVersion: "apps/v1"
kind: "Deployment"
metadata:
name: wp-dp
namespace: blog
spec:
replicas: 2
selector:
matchLabels:
wp: pod
template:
metadata:
name: wp-wusuoweila
labels:
wp: pod
spec:
volumes:
- name: wp-data ## 定义这个挂载的名字
persistentVolumeClaim: ## 挂载方式为PersistentVolumeClaim（PVC）
claimName: wp-pvc ## 指定要挂载的PVC的名字
containers:
- name: wp-container
image: wordpress:latest
imagePullPolicy: IfNotPresent
env:
- name: WORDPRESS_DB_HOST
value: mysql-svc
- name: WORDPRESS_DB_NAME
value: 'wordpress'
- name: WORDPRESS_DB_USER
value: 'wordpress'
- name: WORDPRESS_DB_PASSWORD
value: '123'
volumeMounts:
- name: wp-data ## 指定上面的PVC挂载的名字
mountPath: /var/www/html ## pod里的挂载路径
### pod 关联PVC主要靠 claimName: wp-pvc
[root@master-1 wp]# cat wp.yml
apiVersion: v1
kind: Namespace
metadata:
name: blog
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: pv01
spec:
capacity:
storage: 5Gi
accessModes:
- ReadWriteMany
persistentVolumeReclaimPolicy: Recycle
storageClassName: nfs01
nfs:
path: /data/wordpress
server: 172.16.1.31
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: wp-pvc
namespace: blog
spec:
accessModes:
- ReadWriteMany
resources:
requests:
storage: 4Gi
storageClassName: nfs01
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: mysql-dp
namespace: blog
spec:
replicas: 1
selector:
matchLabels:
mysql: pod
template:
metadata:
name: mysql-wusuoweila
labels:
mysql: pod
spec:
volumes:
- name: mysql-data
hostPath:
path: /data/mysql/data
containers:
- name: mysql-container
image: mysql:5.7
imagePullPolicy: IfNotPresent
env:
- name: MYSQL_ROOT_PASSWORD
value: '123'
- name: MYSQL_DATABASE
value: 'wordpress'
- name: MYSQL_USER
value: 'wordpress'
- name: MYSQL_PASSWORD
value: '123'
args:
- --character-set-server=utf8
- --collation-server=utf8_general_ci
volumeMounts:
- name: mysql-data
mountPath: /var/lib/mysql
---
apiVersion: v1
kind: Service
metadata:
name: mysql-svc
namespace: blog
spec:
selector:
mysql: pod
ports:
- name: mysql-port
port: 3306
protocol: TCP
targetPort: 3306
type: ClusterIP
---
apiVersion: "apps/v1"
kind: "Deployment"
metadata:
name: wp-dp
namespace: blog
spec:
replicas: 2
selector:
matchLabels:
wp: pod
template:
metadata:
name: wp-wusuoweila
labels:
wp: pod
spec:
volumes:
- name: wp-data
persistentVolumeClaim:
claimName: wp-pvc
containers:
- name: wp-container
image: wordpress:latest
imagePullPolicy: IfNotPresent
env:
- name: WORDPRESS_DB_HOST
value: mysql-svc
- name: WORDPRESS_DB_NAME
value: 'wordpress'
- name: WORDPRESS_DB_USER
value: 'wordpress'
- name: WORDPRESS_DB_PASSWORD
value: '123'
volumeMounts:
- name: wp-data
mountPath: /var/www/html
---
apiVersion: v1
kind: Service
metadata:
name: wp-svc
namespace: blog
spec:
selector:
wp: pod
ports:
- name: wp-port
port: 80
protocol: TCP
targetPort: 80
type: ClusterIP
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: wp-ingress
namespace: blog
spec:
rules:
- host: blog.hg.com
http:
paths:
- path: /
pathType: ImplementationSpecific
backend:
service:
name: wp-svc
port:
number: 80
## 启动
[root@master-1 wp]# kubectl apply -f wp.yml
## 部署nfs
[root@nfs ~]# yum install -y nfs-utils
## 修改nfs配置文件
[root@nfs ~]# vim /etc/exports
/data/nginx/data *(rw,sync,no_root_squash)
## 启动nfs
[root@nfs ~]# systemctl restart nfs
## 创建目录
[root@nfs ~]# mkdir /data/nginx/data -p[root@node-1 ~]# yum install -y nfs-utils
[root@node-2 ~]# yum install -y nfs-utils
[root@node-1 ~]# showmount -e 10.0.0.31
Export list for 10.0.0.31:
/data/wordpress 172.16.1.0/24
[root@node-2 ~]# showmount -e 10.0.0.31
Export list for 10.0.0.31:
/data/wordpress 172.16.1.0/24
[root@node-2 ~]# ## 编写PV资源清单（划分共享存储的磁盘空间）
[root@master-1 pv]# vim wp-pv.yml
apiVersion: v1
kind: PersistentVolume ## kind 指定为 PersistentVolume（持久化卷）
metadata:
name: pv01 ## 定义pv的名字
spec:
capacity:
storage: 5Gi ## 定义这个pv的大小
accessModes: ## 定义访问规则
- ReadWriteOnce ## ReadWriteOnce：只有一个node节点可以挂载
persistentVolumeReclaimPolicy: Recycle ## 回收资源的规则
storageClassName: nfs01 ## 存储类别 后端的存储方式是啥 就写啥
nfs: ## 具有特定类别的PV只能与请求了该类别的PVC绑定
path: /data/wordpress ## 未指定类型的PV则只能对与不请求任何类别的PVC绑定
server: 172.16.1.31
## 启动
[root@master-1 pv]# kubectl apply -f wp-pv.yml
## PV资源关键参数:
capacity: PV存储的容量
# accessModes: 访问模式,k8s支持的访问模式如下
------------------------------------------------------
ReadWriteOnce(RWO) : 读写权限，并且只能被单个Node挂载
ReadOnlyMany(ROX) : 只读权限，允许被多个Node挂载
ReadWriteMany(RWX) : 读写权限，允许被多个Node挂载
------------------------------------------------------
# persistentVolumeReclaimPolicy: 回收策略
------------------------------------------------------
Retain : 保留数据，需要手工处理完数据，还能让新的PVC申请
Recycle : 简单清除文件的操作(例如运行rm -rf /dada/* 命令)，新的PVC可以直接申请
Delete : 与PV相连的后端存储完成Volume的删除操作（连PV都直接删除）
目前只有NFS和HostPath两种类型的PV支持Recycle策略。
------------------------------------------------------
## 查看PV
[root@master-1 pv]# kubectl get pv
NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS CLAIM STORAGECLASS REASON AGE
pv01 5Gi RWO Recycle Available nfs01 47s
## 查看详细信息
[root@master-1 pv]# kubectl describe pv
Name: pv01
Labels: <none>
Annotations: <none>
Finalizers: [kubernetes.io/pv-protection]
StorageClass: nfs01
Status: Available
Claim:
Reclaim Policy: Recycle
Access Modes: RWO
VolumeMode: Filesystem
Capacity: 5Gi
Node Affinity: <none>
Message:
Source:
Type: NFS (an NFS mount that lasts the lifetime of a pod)
Server: 172.16.1.31
Path: /data/nginx/data
ReadOnly: false
Events: <none>创建PVC资源
## 编写PVC资源清单
[root@master-1 pv]# vim wp-pvc.yml
apiVersion: v1
kind: PersistentVolumeClaim ## kind 指定为 PersistentVolumeClaim（持久化要求）
metadata:
name: wp-pvc ## 定义pvc名字
spec:
accessModes: ## 定义访问规则
- ReadWriteOnce ## ReadWriteOnce：只有一个node节点可以挂载
resources:
requests:
storage: 4Gi ## 需要的容量
storageClassName: nfs01 ## 存储类别
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: wp-pvc
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 4Gi
storageClassName: nfs01
## 启动PVC k8s就会自动去查找满足要求的PV,比如storageClassName(存储类别),accessModes(访问规则)以及容量这些是否满足要求，如果满足要求就将PV和PVC绑定在一起。
[root@master-1 pv]# kubectl apply -f wp-pvc.yml
persistentvolumeclaim/wp-pvc created
## 查看PV 看看是否自动绑定（查看状态是不是Bound）
[root@master-1 pv]# kubectl get pv
NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS CLAIM STORAGECLASS REASON AGE
pv01 5Gi RWO Recycle Bound default/wp-pvc nfs01 11m
## 查看PVC
[root@master-1 pv]# kubectl get pvc
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
wp-pvc Bound pv01 5Gi RWO nfs01 45s
deploment
## pod管理PVC方式：是通过PVC的名字
## PVC关联PV的方式(匹配规则)：PVC根据以下内容去自动发现绑定PV
- accessModes：访问规则
- storageClassName：存储类别
- storage：容量是否足够
## 还是以volumes（挂载）的形式
[root@elkstack01 volume]# cat kube-wordpress.yaml
apiVersion: "apps/v1"
kind: "Deployment"
metadata:
name: wp-dp
namespace: blog
spec:
replicas: 2
selector:
matchLabels:
wp: pod
template:
metadata:
name: wp-wusuoweila
labels:
wp: pod
spec:
volumes:
- name: wp-data ## 定义这个挂载的名字
persistentVolumeClaim: ## 挂载方式为PersistentVolumeClaim（PVC）
claimName: wp-pvc ## 指定要挂载的PVC的名字
containers:
- name: wp-container
image: wordpress:latest
imagePullPolicy: IfNotPresent
env:
- name: WORDPRESS_DB_HOST
value: mysql-svc
- name: WORDPRESS_DB_NAME
value: 'wordpress'
- name: WORDPRESS_DB_USER
value: 'wordpress'
- name: WORDPRESS_DB_PASSWORD
value: '123'
volumeMounts:
- name: wp-data ## 指定上面的PVC挂载的名字
mountPath: /var/www/html ## pod里的挂载路径
### pod 关联PVC主要靠 claimName: wp-pvc
[root@master-1 wp]# cat wp.yml
apiVersion: v1
kind: Namespace
metadata:
name: blog
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: pv01
spec:
capacity:
storage: 5Gi
accessModes:
- ReadWriteMany
persistentVolumeReclaimPolicy: Recycle
storageClassName: nfs01
nfs:
path: /data/wordpress
server: 172.16.1.31
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: wp-pvc
namespace: blog
spec:
accessModes:
- ReadWriteMany
resources:
requests:
storage: 4Gi
storageClassName: nfs01
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: mysql-dp
namespace: blog
spec:
replicas: 1
selector:
matchLabels:
mysql: pod
template:
metadata:
name: mysql-wusuoweila
labels:
mysql: pod
spec:
volumes:
- name: mysql-data
hostPath:
path: /data/mysql/data
containers:
- name: mysql-container
image: mysql:5.7
imagePullPolicy: IfNotPresent
env:
- name: MYSQL_ROOT_PASSWORD
value: '123'
- name: MYSQL_DATABASE
value: 'wordpress'
- name: MYSQL_USER
value: 'wordpress'
- name: MYSQL_PASSWORD
value: '123'
args:
- --character-set-server=utf8
- --collation-server=utf8_general_ci
volumeMounts:
- name: mysql-data
mountPath: /var/lib/mysql
---
apiVersion: v1
kind: Service
metadata:
name: mysql-svc
namespace: blog
spec:
selector:
mysql: pod
ports:
- name: mysql-port
port: 3306
protocol: TCP
targetPort: 3306
type: ClusterIP
---
apiVersion: "apps/v1"
kind: "Deployment"
metadata:
name: wp-dp
namespace: blog
spec:
replicas: 2
selector:
matchLabels:
wp: pod
template:
metadata:
name: wp-wusuoweila
labels:
wp: pod
spec:
volumes:
- name: wp-data
persistentVolumeClaim:
claimName: wp-pvc
containers:
- name: wp-container
image: wordpress:latest
imagePullPolicy: IfNotPresent
env:
- name: WORDPRESS_DB_HOST
value: mysql-svc
- name: WORDPRESS_DB_NAME
value: 'wordpress'
- name: WORDPRESS_DB_USER
value: 'wordpress'
- name: WORDPRESS_DB_PASSWORD
value: '123'
volumeMounts:
- name: wp-data
mountPath: /var/www/html
---
apiVersion: v1
kind: Service
metadata:
name: wp-svc
namespace: blog
spec:
selector:
wp: pod
ports:
- name: wp-port
port: 80
protocol: TCP
targetPort: 80
type: ClusterIP
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: wp-ingress
namespace: blog
spec:
rules:
- host: blog.hg.com
http:
paths:
- path: /
pathType: ImplementationSpecific
backend:
service:
name: wp-svc
port:
number: 80

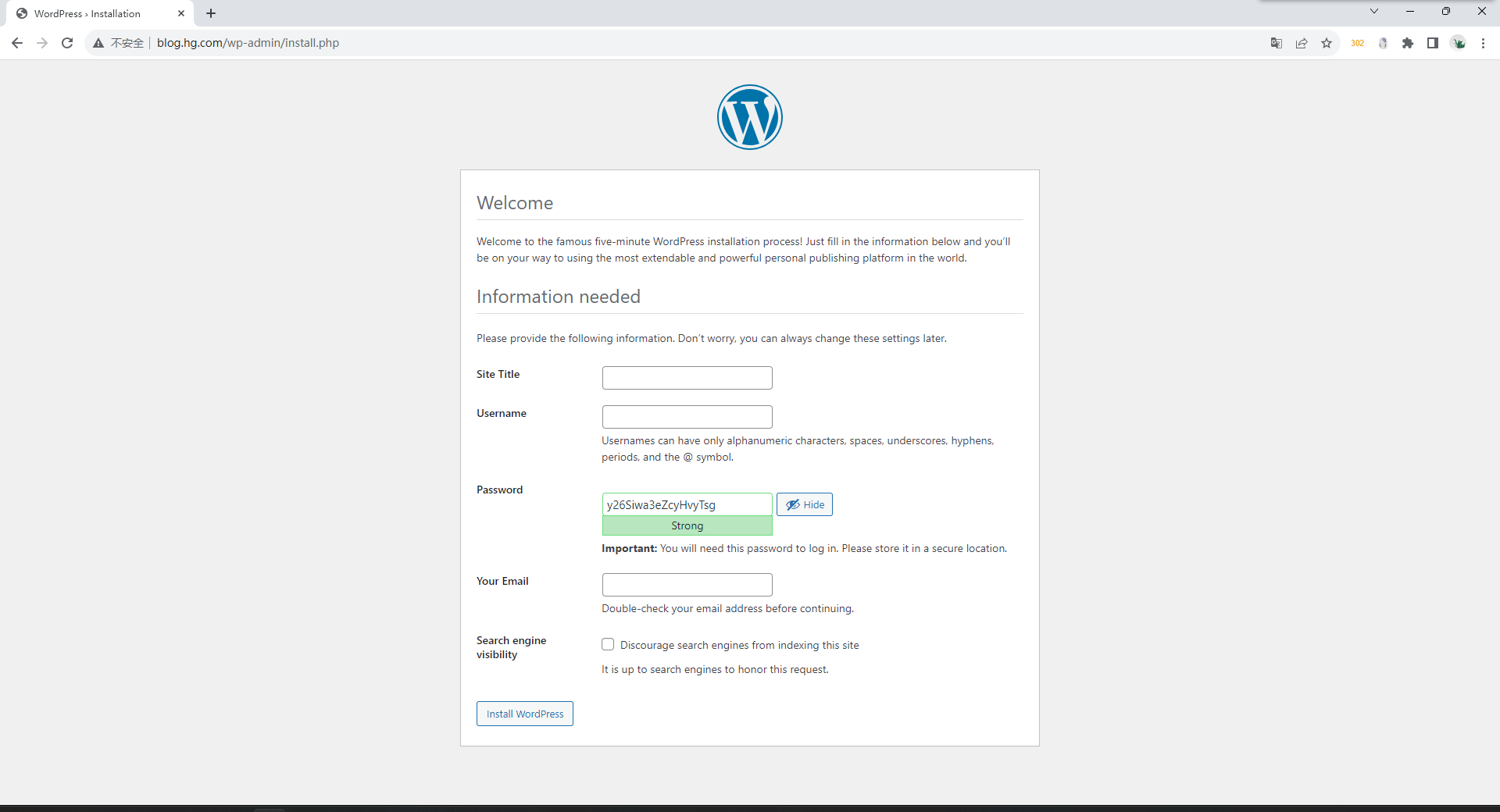

## 启动
[root@master-1 wp]# kubectl apply -f wp.yml
## 编写PVC资源清单
[root@master-1 pv]# vim wp-pvc.yml
apiVersion: v1
kind: PersistentVolumeClaim ## kind 指定为 PersistentVolumeClaim（持久化要求）
metadata:
name: wp-pvc ## 定义pvc名字
spec:
accessModes: ## 定义访问规则
- ReadWriteOnce ## ReadWriteOnce：只有一个node节点可以挂载
resources:
requests:
storage: 4Gi ## 需要的容量
storageClassName: nfs01 ## 存储类别
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: wp-pvc
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 4Gi
storageClassName: nfs01
## 启动PVC k8s就会自动去查找满足要求的PV,比如storageClassName(存储类别),accessModes(访问规则)以及容量这些是否满足要求，如果满足要求就将PV和PVC绑定在一起。
[root@master-1 pv]# kubectl apply -f wp-pvc.yml
persistentvolumeclaim/wp-pvc created
## 查看PV 看看是否自动绑定（查看状态是不是Bound）
[root@master-1 pv]# kubectl get pv
NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS CLAIM STORAGECLASS REASON AGE
pv01 5Gi RWO Recycle Bound default/wp-pvc nfs01 11m
## 查看PVC
[root@master-1 pv]# kubectl get pvc
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
wp-pvc Bound pv01 5Gi RWO nfs01 45s## pod管理PVC方式：是通过PVC的名字
## PVC关联PV的方式(匹配规则)：PVC根据以下内容去自动发现绑定PV
- accessModes：访问规则
- storageClassName：存储类别
- storage：容量是否足够
## 还是以volumes（挂载）的形式
[root@elkstack01 volume]# cat kube-wordpress.yaml
apiVersion: "apps/v1"
kind: "Deployment"
metadata:
name: wp-dp
namespace: blog
spec:
replicas: 2
selector:
matchLabels:
wp: pod
template:
metadata:
name: wp-wusuoweila
labels:
wp: pod
spec:
volumes:
- name: wp-data ## 定义这个挂载的名字
persistentVolumeClaim: ## 挂载方式为PersistentVolumeClaim（PVC）
claimName: wp-pvc ## 指定要挂载的PVC的名字
containers:
- name: wp-container
image: wordpress:latest
imagePullPolicy: IfNotPresent
env:
- name: WORDPRESS_DB_HOST
value: mysql-svc
- name: WORDPRESS_DB_NAME
value: 'wordpress'
- name: WORDPRESS_DB_USER
value: 'wordpress'
- name: WORDPRESS_DB_PASSWORD
value: '123'
volumeMounts:
- name: wp-data ## 指定上面的PVC挂载的名字
mountPath: /var/www/html ## pod里的挂载路径
### pod 关联PVC主要靠 claimName: wp-pvc
[root@master-1 wp]# cat wp.yml
apiVersion: v1
kind: Namespace
metadata:
name: blog
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: pv01
spec:
capacity:
storage: 5Gi
accessModes:
- ReadWriteMany
persistentVolumeReclaimPolicy: Recycle
storageClassName: nfs01
nfs:
path: /data/wordpress
server: 172.16.1.31
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: wp-pvc
namespace: blog
spec:
accessModes:
- ReadWriteMany
resources:
requests:
storage: 4Gi
storageClassName: nfs01
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: mysql-dp
namespace: blog
spec:
replicas: 1
selector:
matchLabels:
mysql: pod
template:
metadata:
name: mysql-wusuoweila
labels:
mysql: pod
spec:
volumes:
- name: mysql-data
hostPath:
path: /data/mysql/data
containers:
- name: mysql-container
image: mysql:5.7
imagePullPolicy: IfNotPresent
env:
- name: MYSQL_ROOT_PASSWORD
value: '123'
- name: MYSQL_DATABASE
value: 'wordpress'
- name: MYSQL_USER
value: 'wordpress'
- name: MYSQL_PASSWORD
value: '123'
args:
- --character-set-server=utf8
- --collation-server=utf8_general_ci
volumeMounts:
- name: mysql-data
mountPath: /var/lib/mysql
---
apiVersion: v1
kind: Service
metadata:
name: mysql-svc
namespace: blog
spec:
selector:
mysql: pod
ports:
- name: mysql-port
port: 3306
protocol: TCP
targetPort: 3306
type: ClusterIP
---
apiVersion: "apps/v1"
kind: "Deployment"
metadata:
name: wp-dp
namespace: blog
spec:
replicas: 2
selector:
matchLabels:
wp: pod
template:
metadata:
name: wp-wusuoweila
labels:
wp: pod
spec:
volumes:
- name: wp-data
persistentVolumeClaim:
claimName: wp-pvc
containers:
- name: wp-container
image: wordpress:latest
imagePullPolicy: IfNotPresent
env:
- name: WORDPRESS_DB_HOST
value: mysql-svc
- name: WORDPRESS_DB_NAME
value: 'wordpress'
- name: WORDPRESS_DB_USER
value: 'wordpress'
- name: WORDPRESS_DB_PASSWORD
value: '123'
volumeMounts:
- name: wp-data
mountPath: /var/www/html
---
apiVersion: v1
kind: Service
metadata:
name: wp-svc
namespace: blog
spec:
selector:
wp: pod
ports:
- name: wp-port
port: 80
protocol: TCP
targetPort: 80
type: ClusterIP
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: wp-ingress
namespace: blog
spec:
rules:
- host: blog.hg.com
http:
paths:
- path: /
pathType: ImplementationSpecific
backend:
service:
name: wp-svc
port:
number: 80
## 启动
[root@master-1 wp]# kubectl apply -f wp.yml
Comments | NOTHING
